Renogy DC‑DC charger hands-on review (2026)
- Shane Monks O'Byrne
- 4 days ago
- 13 min read
For years in my van “Beans” I ran a simple voltage sensitive relay (VSR) to handle split charging. It worked — in the most basic sense of the word. When the engine was running, it connected the starter and leisure batteries. When it wasn’t, it disconnected them. Simple. Cheap. Done. But when I upgraded to a lithium battery this winter, that simplicity suddenly wasn’t enough. Lithium charging is less forgiving than AGM, modern batteries expect controlled multi-stage charging, and cold weather adds another layer of complexity. So I replaced my old VSR with the Renogy 40A DC-DC charger. In this article I’ll break down why that change mattered, how the install actually works in the real world (including smart vs non-smart alternators), how it performs paired with Renogy’s self-heating lithium battery, and whether a proper DC-DC charger is worth it over a traditional split charge relay in 2026.
Index
Transparency matters: Renogy provided me with the DC-DC charger mentioned in this article to test and review. As always, I’m sharing my honest, hands-on experience. They had no input on the testing, the content, or the verdict. What follows is my honest assessment after using it full-time in winter conditions here in Chamonix.
This post contains affiliate links, which means that if you click a product link and buy anything from the merchant (Amazon, eBay, etc.) we will receive a commission fee. The price you pay remains the same, affiliate link or not. By using these links, you are helping me to continue writing free educational content! To understand our policies on content, affiliate commissions, and liability, please review our Terms of Use.
Shane, the founder of The Van Conversion, is a campervan professional and NCC-certified electrical installer. Since 2020, he’s lived on the road full-time, completing several van builds along the way. He’s the author of Roaming Home and the creator of The Van Conversion Course, which have helped thousands build their own vans. Shane also writes The Van Conversion Newsletter, where he shares hands-on tips and practical insights. He’s passionate about empowering others to make their vanlife dreams reality.
Did you know you can get a free electrical wiring diagram by signing up for The Van Conversion Newsletter?
TL;DR
I swapped my old voltage sensitive relay (VSR) for the Renogy 40A DC-DC charger when I upgraded to lithium — and it’s a completely different league of charging. The VSR technically “worked,” but it offered no proper voltage regulation, no lithium profile, and no protection against modern alternator quirks. The Renogy 40A gives controlled, multi-stage charging designed specifically for LiFePO₄, proper current limiting, and optional ignition (D+) control for smart alternators. Installation was straightforward (positive/negative in, positive/negative out), and with the BT-2 Bluetooth module I can monitor everything from my phone. Charging is faster, more stable, and far more predictable than before. If you’re running lithium — especially in anything newer than an old-school alternator van — a proper DC-DC charger isn’t an upgrade, it’s a requirement.
Why I swapped a simple VSR for a proper DC‑DC charger
For years, I split‑charged my house batteries the “old school” way: a cheap voltage sensitive relay (VSR). It worked, but it was by no means optimal.
A VSR’s job is brutally simple: when it senses the starter battery/alternator voltage rise (engine running), it connects the starter and leisure batteries together. When the voltage falls (engine off), it disconnects. That’s it. No charge profile. No current limiting. No “matching” the battery chemistry you’re charging.
That simplicity is fine for small lead‑acid setups where you don’t care about long charge times or perfect charging. But the moment you move to lithium (or you’re trying to live comfortably in a van year‑round), the cracks start showing:
A VSR can’t regulate voltage, so “whatever the alternator happens to be doing” is what your leisure battery sees.
A VSR can’t limit current. Lithium batteries can accept high current very happily, which is great… right up until it isn’t, because alternators and wiring have limits.
Smart alternators (common on newer Euro‑vans) deliberately vary alternator output. That can confuse voltage-sensing devices, and it’s one of the reasons many systems rely on an ignition/D+ signal instead of “guessing” from voltage.
A DC‑DC charger (often called a B2B, battery‑to‑battery charger) is basically the grown‑up version of alternator charging: instead of hard‑connecting the two batteries, it converts alternator power into a controlled charge for the house bank. In other words: it turns “alternator chaos” into “battery‑friendly charging”.
That’s the context for why adding a DC‑DC charger became non‑optional when I upgraded to a lithium system (and particularly when I paired it with a cold‑weather battery setup).

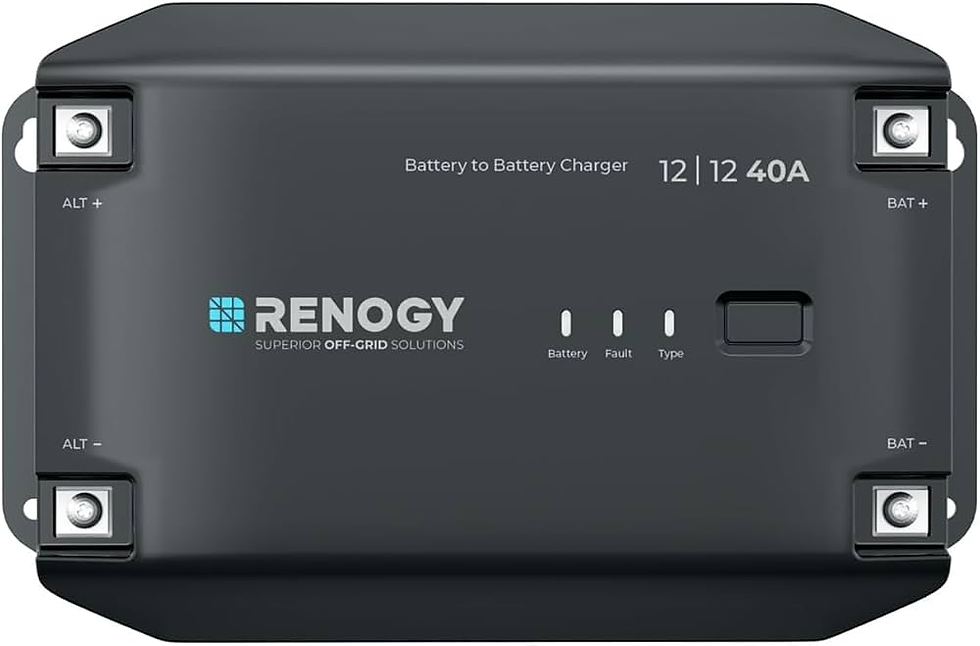

What the 40A Renogy DC‑DC charger actually does
This article is about a 12V‑to‑12V DC‑DC charger in the ~40A class, i.e. a unit designed to take power from your starter battery/alternator side and deliver a controlled charge to your leisure battery at up to around 40A (when conditions allow).
A few key behaviours:
The charger is designed to charge multiple battery chemistries using a multi‑stage charging profile (bulk/boost/float depending on chemistry and settings). It includes “house battery protection” features like current limiting (via an LC terminal on some models) and a D+ ignition input that’s intended to make sure the charger only runs when the engine is genuinely on. On the common 40A on‑board model, Renogy lists an output of 40A (616W), an 8–16V input voltage range, and operation down to about ‑20°C.
Two quick, but important points:
First: these chargers can pull more current on the input side than you think. Renogy’s own manual warns that when the charger is delivering its rated output, the input side may experience a higher current draw by a factor of up to 50%. That matters for cable sizing, fusing, and alternator load. Hence why they recommend a 60A fuse on the input side versus a 50A fuse on the output side (see wiring diagram above).
Second: the ignition/D+ requirement depends on the exact model and generation. Some chargers can voltage‑sense and turn on that way. Others explicitly require a D+ signal to power up. (More on that in the D+ section)
Renogy DC-DC charger Installation
As we saw from the diagram above, the anatomy is as follows:
Starter battery → Fuse → DC-DC charger → Fuse → Leisure battery
We also need consider a d+ connection and ensure that our ground connection is correct.
Cable size and fuses are not optional “nice to haves”
For the Renogy 40A DC-DC charger, the manual gives clear recommendations for cable sizing and protection — and they’re there for a reason.
For the 40A model specifically, Renogy recommends:
Input (starter battery side): 6 AWG cable (≈ 16 mm² in metric) for typical short-to-medium runs,with a recommended 60 A fuse close to the starter battery.
Output (house battery side): 8 AWG cable (≈ 10 mm² in metric) for short runs (0–3 m total circuit length), with a recommended 50 A fuse close to the leisure battery.
Those aren’t arbitrary figures.
At 12 V, current is high by nature. Forty amps at charging voltage means the input side can easily draw 45–50 A once you account for conversion losses. A small amount of resistance becomes voltage drop. Voltage drop becomes heat. Heat becomes efficiency loss — or worse.
This is especially important in van builds where cable runs aren’t 50 cm lab-test conditions. If your total circuit length (out and back combined) starts creeping beyond 3 m, it’s often worth stepping up a size in metric terms:
10 mm² minimum on the output side
16 mm² preferred on the input side
Or simply 16 mm² on both sides and eliminate the guesswork
Mounting: ventilation and proximity matter
Renogy explicitly calls out a few practical mounting requirements:
Install in a dry location, protected from splashing water.
Min 5cm clearance around the unit for airflow / ventilation.
Place it as close as possible to the battery you’re charging (the leisure battery) to reduce voltage drop and improve performance.
That last point is more important than people realise. If your charger is in the engine bay and your house battery is in the back of a long van, the cable run can be so resistive that you lose charging performance and create heat issues.
Grounding: keep it simple, keep it intentional
The on‑board Renogy DC‑DC units are common negative systems: input negative and output negative ultimately share ground. The manual notes there should be one common ground point between batteries/electronics (often chassis ground), and that typically connecting starter and house negatives directly to the DC‑DC is enough for grounding in many installs.
That’s consistent with good practice: negative return current needs a low‑resistance path, and the same rules apply as on the positive side—poor grounding creates voltage drop and heat.
To make that crystal clear: Your leisure battery negative should be connected to the van chassis and your starter battery negative should be connected to the van chassis. Both battery negatives will therefore share a common ground (chassis return path). Learn more about grounding here.
D+ / ignition wiring and smart alternators without the mystery
Let’s talk about the little wire that causes the most head‑scratching.
What D+ is supposed to do
In plain language, the D+ / ignition input is a way for the charger to know “engine is on—charging is allowed.”
Without a D+ signal:
The DC-DC charger might turn off while driving
Or turn on intermittently
Or fail to start properly at all
It also avoids the DC‑DC charger being confused by modern “smart alternator” behaviour.
On the Renogy DC-DC series, the manual is unambiguous: the DC‑DC will not power on or operate until the D+ ignition cable is connected.
Here's a helpful article on how to find your D+ connection.
Why smart alternators make voltage‑sensing unreliable
A lot of modern vehicles (especially Euro 6‑era) use ECU‑controlled alternators that vary output voltage and sometimes reduce/disable alternator output when the vehicle decides it’s not needed.
If a charger or relay is trying to detect “engine on/off” purely from voltage, it can incorrectly decide the engine is off while you’re driving, because voltage can drop closer to resting battery voltage during alternator management periods.
This is why many manufacturers either require an ignition input, or build smarter engine‑run detection into the charger. For example, Victron Energy explicitly describes engine shutdown detection challenges on Euro‑6 vehicles, and builds engine‑run detection into newer chargers to avoid false triggers.
My Ford Transit L3H3 van is an older model (2012), so I’m not dealing with the modern variable‑voltage alternator behaviour that forces an ignition‑signal design in many builds. I did not need to install a D+ connection here.
My other van is a Citroen Jumper L3H3 (2024), it has a smart alternator so with a Renogy DC-DC charger I would need to install the D+ connection. However I purchased a Victron Orion DC-DC charger for that build which has built in smart alternator detection (it's not perfect but works most of the time).
So my advice is very simple:
If your Renogy model says D+ is mandatory (and many do), wire it.
If your model supports voltage sensing and you’re in an older “normal alternator” vehicle, you may be able to run without D+, but you’re betting your system behaviour on voltage thresholds—so test properly.
Bluetooth monitoring with the BT‑2 dongle and the app
The Renogy BT‑2 is a Bluetooth module designed for Renogy devices that communicate via RS485. It plugs into a compatible RJ45 communication port and lets you monitor system data and adjust parameters in the Renogy DC Home smartphone app.
One important compatibility note: BT‑2 only works with devices that have the RS485 communication port. Renogy’s own guidance is to check the manual/spec sheet for the specific device.
The app experience, in practice
Renogy’s current app documentation describes three connection methods:
Built‑in Bluetooth,
External Bluetooth modules (BT‑1 / BT‑2)
Remote /WLAN options via a Renogy hub device.
I personally have two Renogy devices - each differ in their bluetooth connectivity:
My Lithium Pro Smart battery connects automatically to the app (the BMS has a built-in bluetooth module)
My 40A DC-DC charger (what we are discussing in this guide) needs the BT-2 dongle
For me, having app visibility has been a genuine quality‑of‑life upgrade: instead of guessing whether I’m getting alternator charge, I can see current, voltage behaviour, and (on the battery side) temperature and state of charge.
How to install setup a Renogy DC‑DC charger
Don’t oversize the charger just because you can
Renogy’s own guidance for selecting a charger is straightforward: make sure the charger’s maximum current does not exceed what your house battery allows.
That single sentence hides a lot. Lithium batteries can accept high charge current, but your specific battery still has a maximum recommended/allowed charge current, and your alternator has finite output (and thermal limits).
In my split‑charging guide, I give a conservative rule of thumb: don’t exceed ~40% of alternator output with a split‑charging system (so a 150A alternator → ~60A DC‑DC). It’s not a universal law, but it’s a sensible “don’t cook your alternator” starting point for many vans.
If you want a more manufacturer‑style framing: Victron Energy explicitly notes that controlled charging is indispensable in smart alternator vehicles, and that controlled charging can also protect the alternator in lithium systems where direct charging can overload the alternator due to lithium’s low impedance.
Use current limiting when your alternator or wiring needs it
On the Renogy DCC1212 series, there’s an LC terminal that enables 50% current limiting when connected to a 12V source, with the 40A model limiting to 20A.
This is not a gimmick. It’s a safety valve:
Smaller alternator? Limit the charger.
Long cable runs you can’t avoid? Limit the charger.
Hot engine bay in summer? Limiting reduces thermal stress on everything.
The good news is the principle is the same even when the implementation differs: limiting charge current (whether via a setting or an LC wire) is often the difference between a robust system and one that slowly murders expensive parts.
Of course, if you know you will need to limit the current, you should probably just buying a smaller (eg. 20A) DC-DC charger to begin with!
Select the correct charging mode (important)
When I installed the Renogy 40A DC-DC charger, I had to manually select the correct battery type. It does not auto-detect chemistry. If you’re running lithium and it’s still set to AGM, you’re not charging correctly.
Renogy gives you two ways to set the mode:
1) Using the physical SELECT button on the unit
Press and hold the button for about 3 seconds and the charger cycles through battery types. The LED changes colour depending on the mode:
Green – Sealed/AGM
Yellow – Gel
Red – Flooded
Blue – LiFePO₄ (lithium, activation disabled)
Purple – LiFePO₄ (lithium, activation enabled)
White – User/custom mode
For most lithium installs, you’ll be selecting either blue or purple. The purple “activation enabled” setting allows the charger to attempt recovery of a lithium battery that has gone into low-voltage protection.
Once selected, the LED gives you a quick visual confirmation of the active chemistry.
2) Using the Renogy app (with the BT-2 Bluetooth module)
If you’ve plugged in the BT-2 dongle, you can select the battery type directly in the Renogy app. The charger and app stay in sync, so changing it in one updates the other.
The app also lets you confirm charging stage, input/output current, and system behaviour without pulling panels off to stare at LEDs.
The key point is simple: make sure it’s actually set to lithium before you drive away. These chargers are only as smart as the mode you tell them to use.
Temperature compensation: don’t blindly enable it on lithium
Renogy’s manual includes an optional DC‑DC temperature sensor for adjusting charging voltage with battery temperature—and then adds a clear caution: do not use with lithium batteries (for temperature compensation).
This aligns with broader lithium guidance: for example, Victron states temperature‑compensated charging is not necessary for lithium and should be disabled/set to 0 mV/°C.
My lithium batteries are self-heating and thus I do not need this feature anyway.
Basic troubleshooting
Renogy’s own troubleshooting guidance for their DC‑DC chargers is practical:
If the power LED isn’t on, they recommend measuring input voltage and D+ voltage with a multimeter while the engine is running. If both are above ~9V and the charger still shows no power LED, it may be faulty.
If the charger powers on but isn’t charging, they point straight at the likely culprits:
Battery type / voltage settings (DIP switches) not matching the battery.
Verify output voltage at the charger with only input and D+ connected to confirm it matches the expected setting.
Conclusion
A DC-DC charger might not be something you show off on Instagram. But if you’re running lithium — especially in a modern van — it’s one of those foundational upgrades that quietly makes everything else work properly. It is one of the highest “quality of life per euro” upgrades you can make to a campervan electrical system - as I have personally found. Compared to the old VSR I was using, the Renogy 40A feels controlled, intentional, and predictable. The battery charges the way it should. The alternator isn’t stressed. The app gives me visibility. And most importantly, I don’t think about it anymore. Good electrical design isn’t about complexity — it’s about removing uncertainty.
